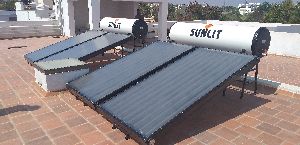

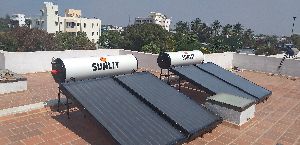

Flat Plate Collector Domestic Solar Water Heater
Price : 40,000.00 - 70,000.00 / Rs
Get Best Price
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter |
| Absorber | Copper / Aluminum with Black Chrome |
| Fin Welding | Ultra Sonic |
| Collector Frames | Aluminum Powder Coated |
| Click to view more | |
Preferred Buyer From
| Location | India ( Andhra Pradesh, Karnataka, Kerala, Manipur, Meghalaya, Mizoram, Nagaland, Pondicherry, Tamil Nadu, Telangana), Bhutan, Ethiopia, Fiji, Ghana, Gambia, Guinea, Equatorial Guinea, Indonesia, Kenya, Kuwait, Lebanon, Sri Lanka, Madagascar, Myanmar, Mauritius, Maldives, Nigeria, Nepal, Papua New Guinea, Philippines, Thailand, Turkey, Vanuatu, South Africa, Zambia |
Product Details
Top Cover / Glazing
Toughened Glass 4 mm thickness
Collector Area
2.0 Sq.M
Inner Tank
Stainless Steel 304 - L / GI
Inner Tank Welding
Seam Welding / Mig Welding
Turbulence Preventer
Provided
Deep Drawn Dishes
Provided
Outer Tank
Stainless Steel
Tank Side Dish
GI Powder Coated
Heat Retention
72 hours
Insulation
PUF
Supporting Stand
GI PU Coated
Pressure Release Value
Provided (for pressuria model only)
Catalogue
View
Solar hot water system is based on the principle of back body absorption. The black surface of the collector absorbs the heat energy from the sun rays and transfer it to the water passing through The copper tubes. Hot water being lighter in density, raised to the insulated storage tank And equal amount of cold water replaces this hot water from the copper tubes.
Available Models
| Models | 100LPD | 200LPD | 250LPD | 300LPD | 500LPD |
| No. of Collector | 1 Nos | 2 Nos | 2 Nos | 3 Nos | 4 Nos |
| Heater Coil | Optional | ||||
| Utility Points | 1-2 | 4 | 5 | 6 | 8 |
| No. of Persons | 3-4 | 6-8 | 8-10 | 10-12 | 12-15 |
| Temperature | 50-60 Deg. C | ||||
